Model:

$130

Free Shipping
See other products in LiteZilla or LiteZilla
Need help?
Contact a sales specialist

Specifications

Part Number TVBU810

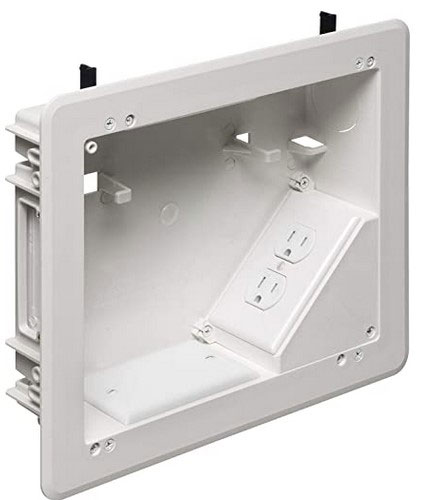

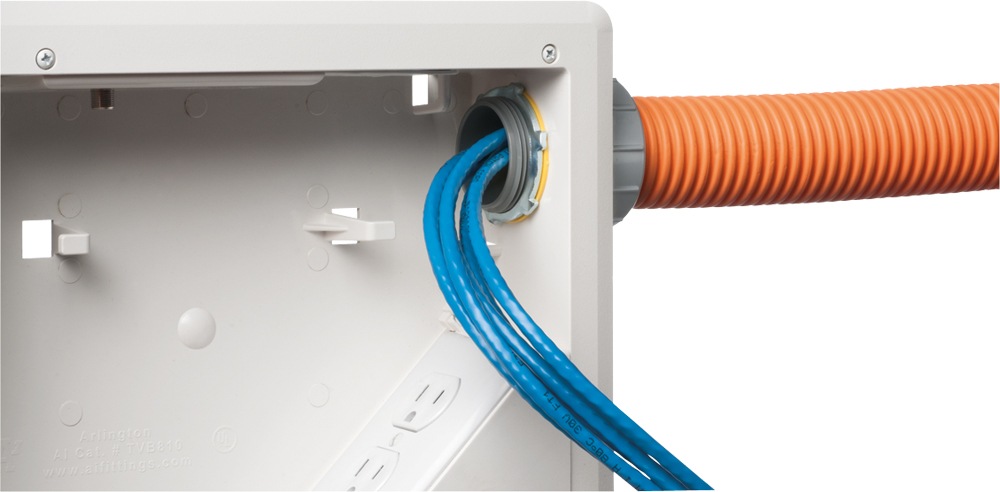

Description 8 x 10 Plastic TV BOX BRIDGE kit. Includes line voltage box, duplex receptacle. 1-1/2" knockout, cable entry device, wire management brackets. For new and old construction.
UPC 018997097583
Unit Packaging 1pc
Standard Packaging 1pc
Country of Origin
Listing

Physical Information

Instructional Video TVBU810 Instructional Video

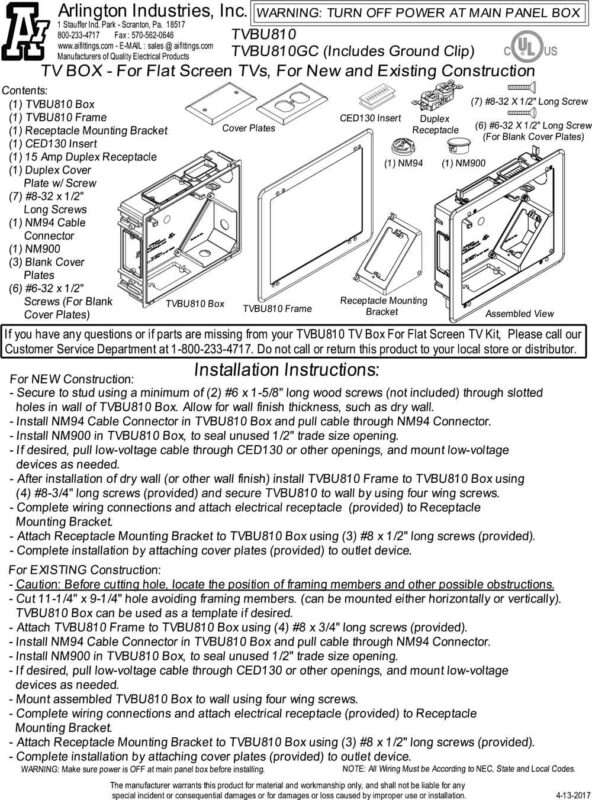

Instruction Sheet TVBU810 Instruction Sheet
Weight 1.828 lbs/each
Height 10.656"
Width 12.531"
Color White
Material(s) Plastic

Technical Information

Line Drawing TVBU810 Line Drawing
Description Non-metallic power/low voltage box

Comes With

(1) TVBU810 Frame
(1) TVBU810 Box
(1) Tamper-Resistant Duplex Receptacle
(1) Single-Gang Wall Plate with screw(s)
(3) Single-Gang Blank Wall Plates with screws
(1) Receptacle Mounting Bracket
(1) NM Snap-In Blank
(1) NM Cable Connector
(1) CED130 Insert
(7) #8-32 x 1/2" Long Screws
MINI Recessed In-Wall Electrical Box
MINI Recessed In-Wall Electrical Box
